TOP FEATURES

Torquey 700-Class Engine

The Viking EPS® is equipped with Yamaha’s powerful 686cc engine with a broad, usable powerband for getting the job done or when hitting the trails. Liquid-cooling provides consistent performance, a four-valve head with 10.0:1 compression delivers optimum torque for virtually any workload.

High Volume Intake

The Viking EPS features a large-capacity air intake system that improves overall engine performance. The air cleaner box is easily accessible from inside the cabin for improved serviceability.

Responsive and Reliable Ultramatic® Transmission

Ultramatic® transmission with dual-range (Hi/Lo) drive and reverse is the most advanced drive system available. An automatic centrifugal clutch maintains constant belt tension for reduced belt wear, and the system features a sprag clutch for all-wheel downhill engine braking in 4WD mode and reverse. Backed by an unmatched Yamaha 10-Year Belt Warranty, owners have peace-of-mind that they are driving the most trusted transmission in the industry.

On-Command® 4WD

Industry-exclusive three-position On-Command® 4WD system lets you switch between 2WD, limited-slip 4WD, and fully locked differential 4WD. Unlike competitors’ automatic 4WD systems, On-Command puts the driver in full control to make the most of available traction in various types of terrain.

Comfortable Three-Seat Cabin

This true three-passenger machine achieves driver and passenger comfort with a handhold, padded headrests, and three-point seat belts for all riders. Extensive noise and vibration reduction measures provide a smooth and quiet ride. The superior seating position, adjustable driver’s seat and an offset middle seat all provide unmatched comfort that riders will appreciate. Yamaha’s proven Electric Power Steering technology further reduces fatigue and strain on the driver, too.

Extensive Cargo Capacity

The chassis design includes a convenient pass-through floor for greater ease of on-board movement, making it possible to enter and exit the vehicle from either side. The rear cargo bed is made of steel and is designed for a hefty load capacity of 600 pounds.

ENGINE

Torquey 700-Class Engine

The Viking EPS is equipped with Yamaha’s powerful 686cc engine with a broad, usable powerband for getting the job done or when hitting the trails. Liquid-cooling provides consistent performance, a four-valve head with 10.0:1 compression delivers optimum torque for virtually any workload.

Yamaha Electronic Fuel Injection

Electronic Fuel Injection ensures peak performance in nearly all conditions and elevations, along with instantaneous cold starts and smooth throttle response.

Efficient Intake System

Large-capacity air intake system contributes to the engine’s overall power development. Air injection system burns the un-combusted elements in the exhaust, resulting in even further reduced emissions.

Clean-Running Drive Case

The specially designed drive system air intake helps prevent overheating and assists in keeping water and debris from entering the drive case.

Gated Shifter

Convenient dash-mounted gated shift lever (L/H/N/R) provides simple Ultramatic® transmission operation.

CHASSIS/SUSPENSION

Electric Power Steering

Yamaha’s proven Electric Power Steering system on the Viking EPS offers excellent handling over various types of terrain, with lower steering effort for reduced fatigue after a long day in the field or on the trails.

Excellent Ground Clearance

A maximum 11.8-inch ground clearance delivers underbelly protection while enhancing terrainability. The Viking EPS’ width also helps minimize 30-inch row crop damage.

Powerful All-Wheel Disc Brakes

Large diameter front and rear wheel disc brakes provide excellent stopping power, and the dash-mounted parking brake is simple and convenient to use with a buzzer to notify the driver if the parking brake is accidentally left engaged.

Hefty Towing Capability

Standard center-mounted, heavy-duty 2-inch receiver-style hitch can tow up to 1,500 pounds.

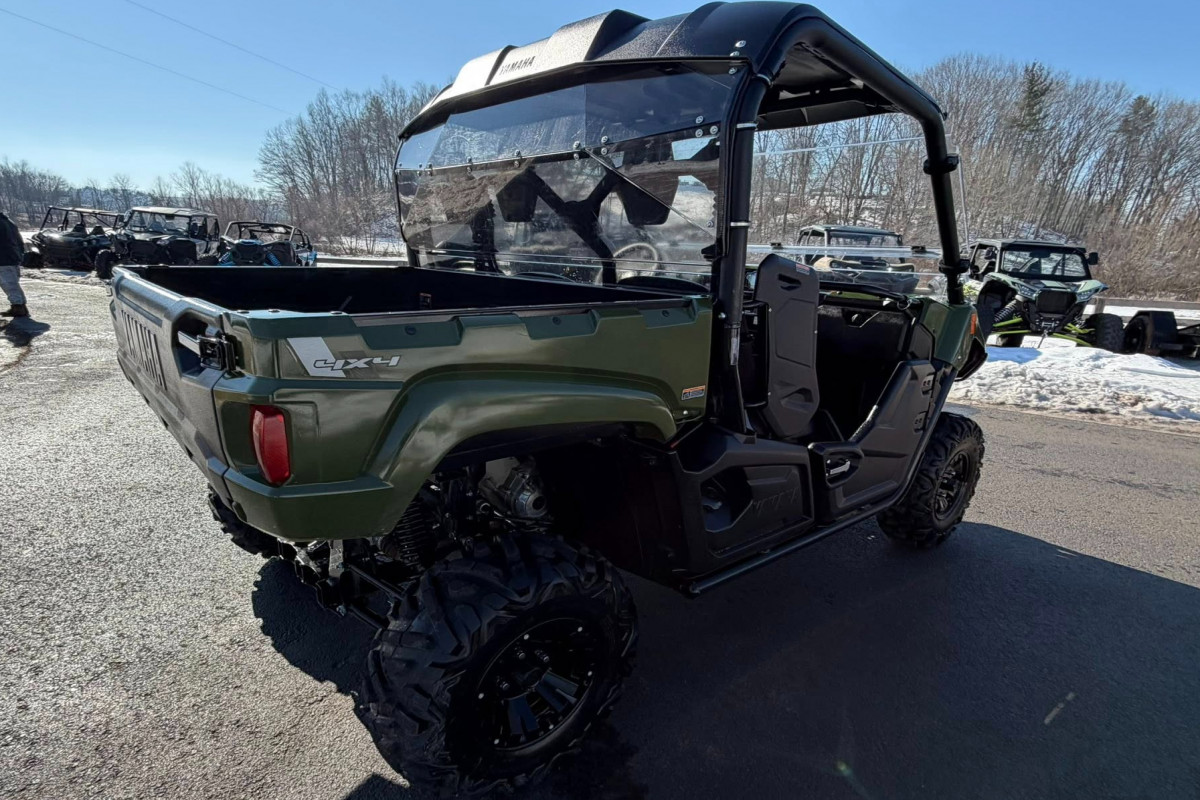

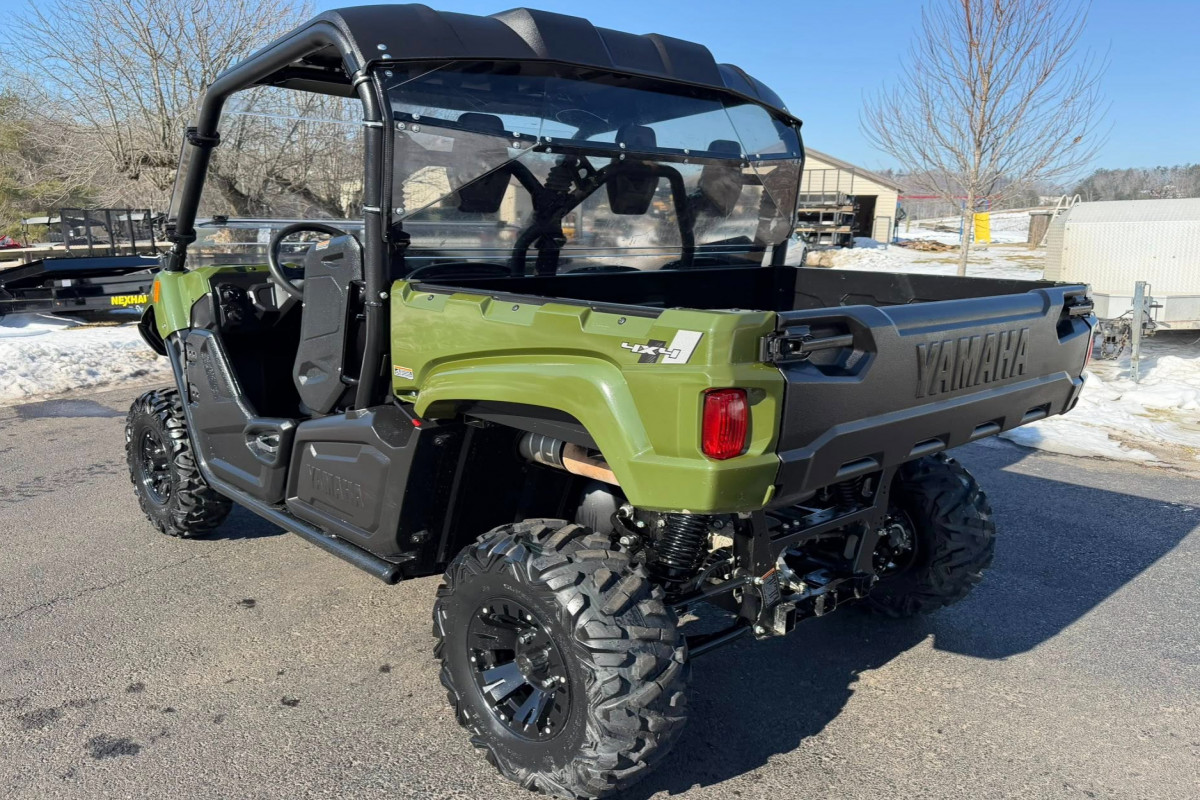

Convenient Cargo Bed

Stamped steel dump bed is rated to haul 600 pounds of gear and features tie-down hooks to ensure cargo is strapped down securely. The cargo bed can be unlatched and tilted from either side when needed, too. The bed rails have integrated mounting points to make installing Yamaha Genuine Accessories that much easier.

Rubber Cargo Bed Mat

Rubber cargo bed mat further reduces noise and vibration while improving durability and providing extra holding power for cargo.

ADDITIONAL FEATURES

Service Accessibility

The engine is located under the cargo bed and can be easily accessed when the bed is lifted. Center hood access for battery and other electrical components eases maintenance. Under-seat, tool-free air filter is a snap to service.

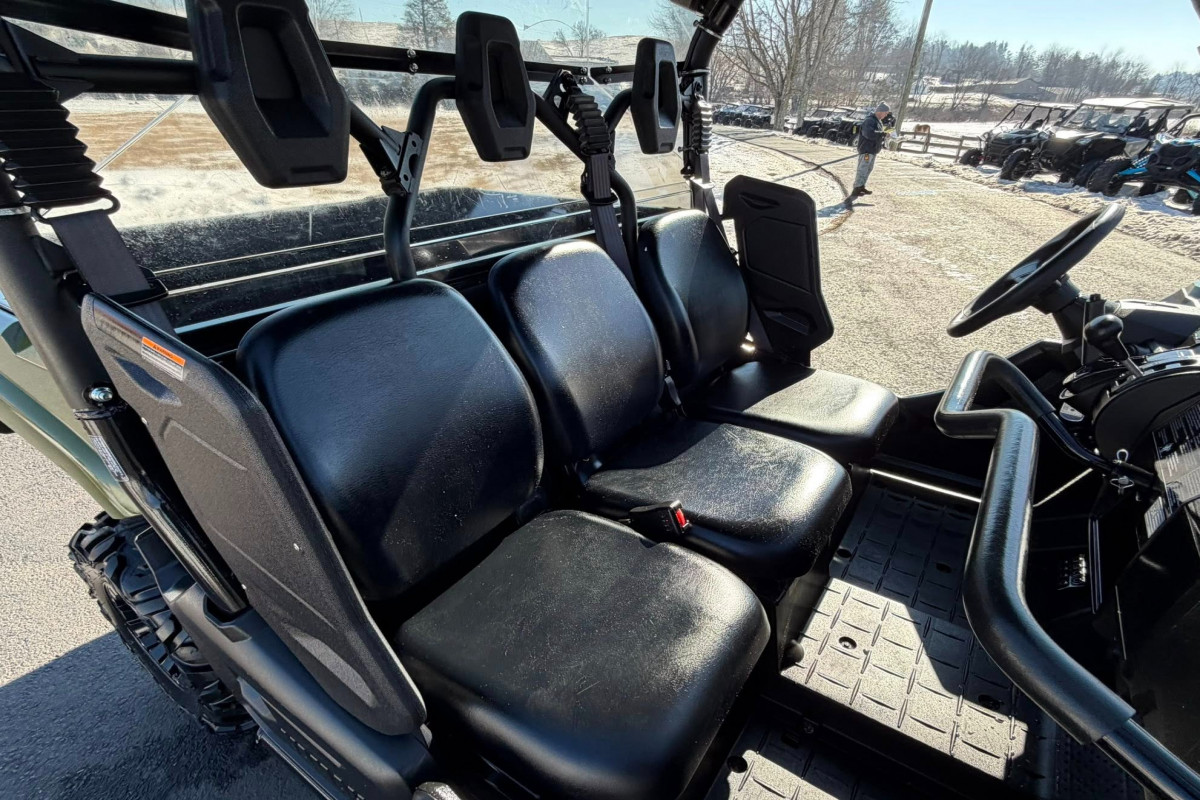

Roomy, Comfortable Cabin

Padded head rests are included and the middle seat is set back for both driver and passenger comfort. The pass-through floor provides onboard ease of movement for getting in and out of the vehicle from either side while a standard suntop keeps passengers covered.

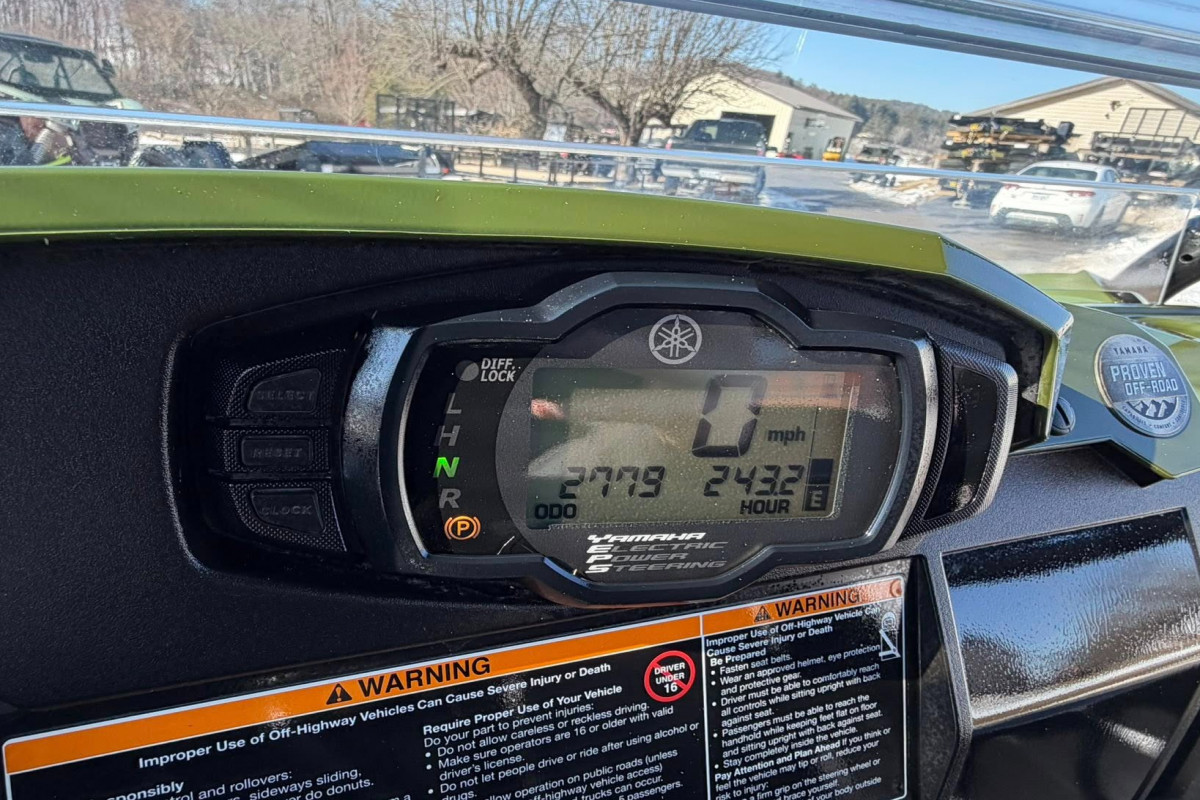

Digital Instrumentation

Digital instrument panel boasts multifunction LCD display with speedometer, odometer, dual trip meters, hour meter, 4WD status, transmission position, clock, and a fuel gauge.

Underbody Protection

Steel skid plate under the frame provides protection from rocks and ruts and helps prevent the Viking EPS from getting stuck.

Cabin Storage

A latching glove box is included to store smaller items. The Viking EPS is also equipped with four in-dash cup holders for passenger comfort.

Big Fuel Tank

Large, 9.7-gallon fuel tank allows for long rides.

Built Real World Tough®, Assembled in the USA

Like all of Yamaha's Side-by-Sides and full-size ATVs, the Viking EPS is assembled with pride in the USA at Yamaha's state-of-the-art factory in Newnan, Georgia.
